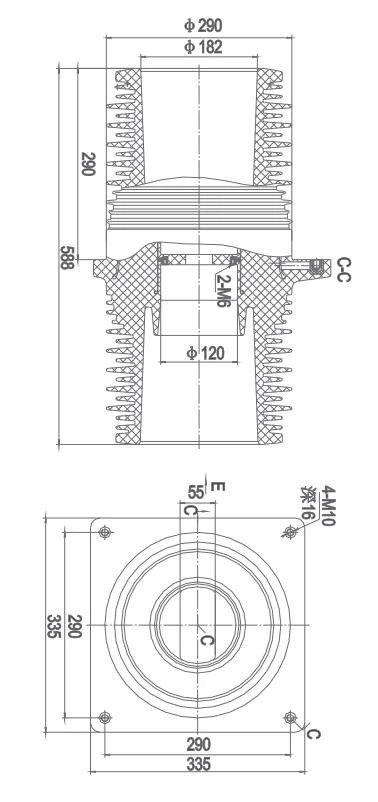

Bushing TGN40.5-588

Technical Parameter Value Unit
PF 122/137 kV/1min
PD 1.1Ur≤3 pC
Flame Retardant Rating V1 V0 Special Requirements UL94
Tg 105±5
Lightning Impulse 235/267 kV
Creepage Distance 20+ 20%/+30% mm/kV
Rated Current ≤2500 A
Color Red

Epoxy Resin APG

Raw Material Parameter Value Unit
Hydroscopicity ≤0.2 %
Dielectric Loss 0.01
Insulation Resistance 1.0*10¹⁴ Ω
Disruptive Strength ≥18 kV/mm
Arc Resistance 182 S
Impact Strength ≥7 kj/m²
Bending Strength ≥110 N/mm²

Bushing TGN40.5-588
