Shielded Contact Box CHN40.5-309P/660 CHN40.5-311P/660

SHIELDED AND BEVELED CONTACT BOX

Selection Drawing No. Mounting Distance

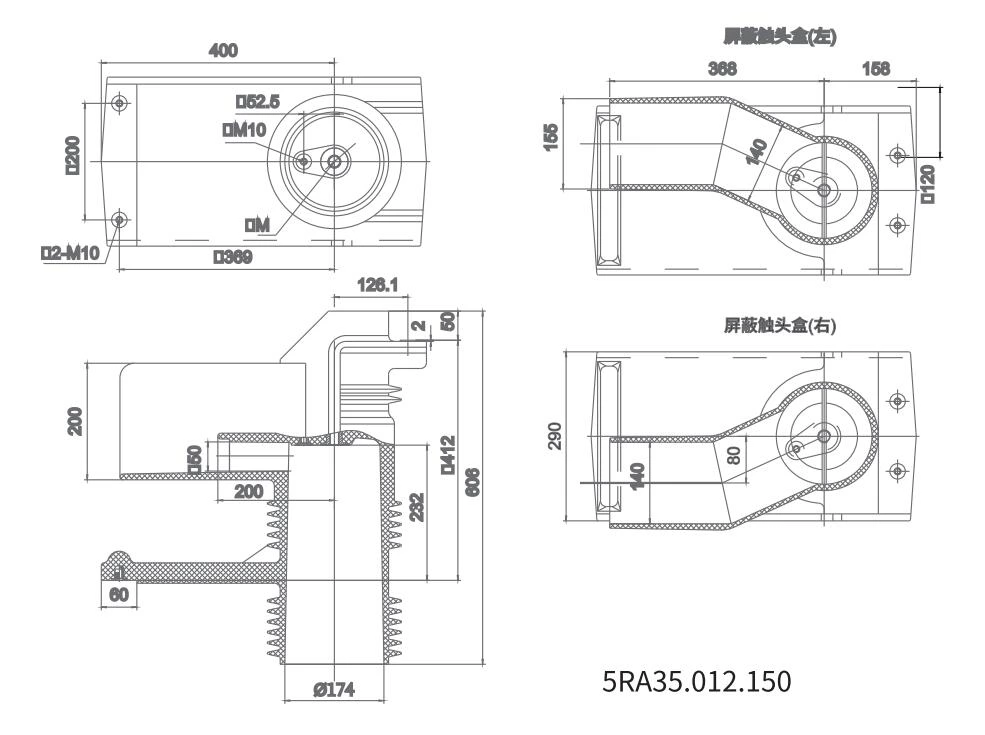

CHN40.5-309P/606  5RA35.012.150.01 280
CHN40.5-309P/606   5RA35.012.150.06 280

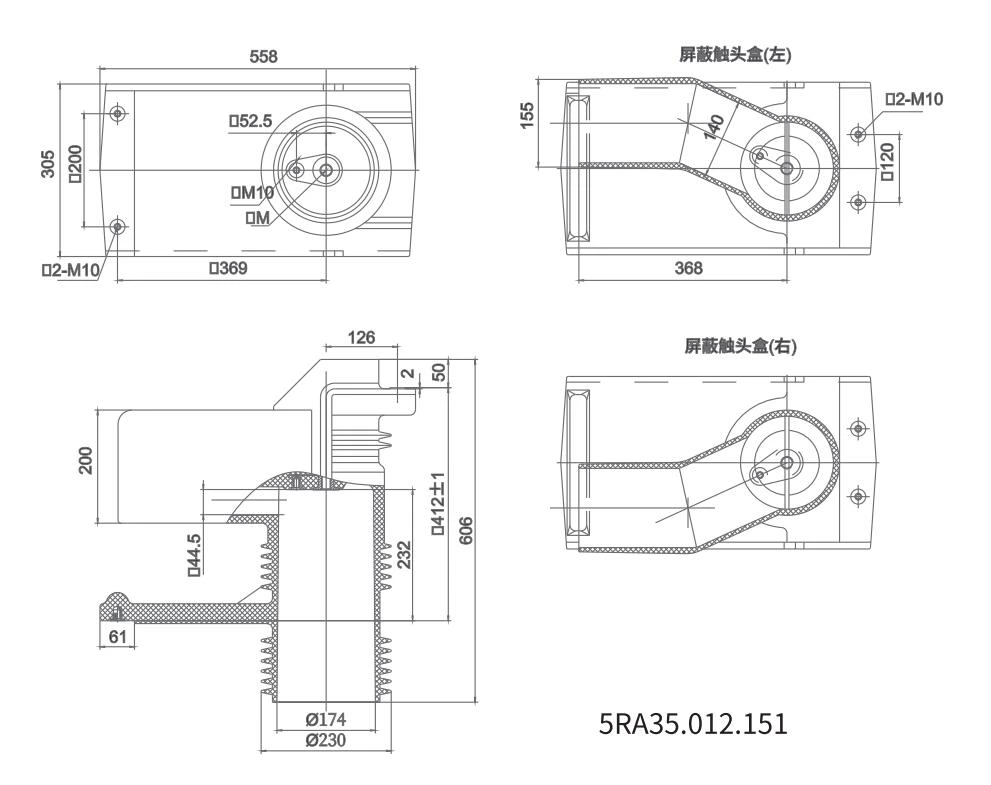

CHN40.5-311P/606  5RA35.012.151.01 300
CHN40.5-311P/606  5RA35.012.151.06 300
Technical Parameter Value Unit
PF 95 kV/1min
PD 1.1Ur≤3 pC
Flame Retardant Rating V1 V0 Special Requirements UL94
Tg 105±5 °C
Lightning Impulse 185 kV
Interphase Air Distance 360 mm
Color Red

Epoxy Resin APG

Raw Material Parameter Value Unit
Hydroscopicity ≤0.2 %
Dielectric Loss 0.01
Insulation Resistance 1.0*10¹⁴ Ω
Disruptive Strength ≥18 kV/mm
Arc Resistance 182 S
Impact Strength ≥7 kj/m²
Bending Strength ≥110 N/mm²

 Shielded Contact Box CHN40.5-309P/660 CHN40.5-311P/660Shielded Contact Box CHN40.5-309P/660 CHN40.5-311P/660
