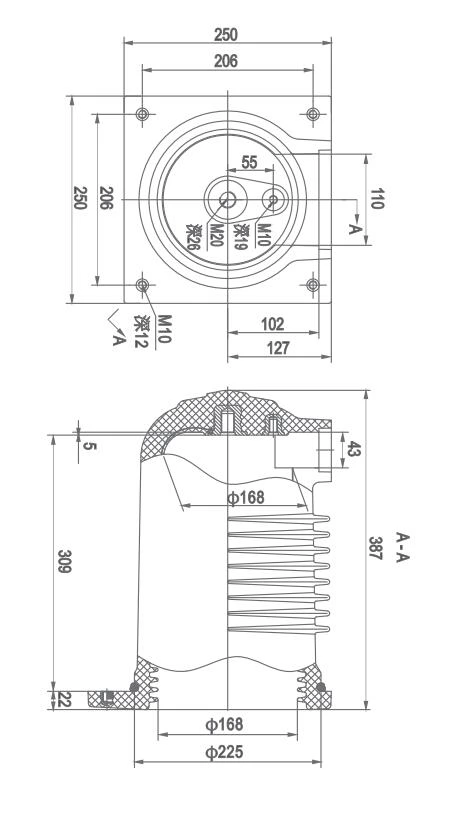

Shielded Contact Box CHN24-507

Technical Parameter Value Unit
PF 65 kV/1min
PD 1.1Ur≤3 pC
Flame Retardant Rating V1 V0 Special Requirements UL94
Tg 105±5 °C
Lightning Impulse 125 kV
Creepage Distance 20 mm/kV
Rated Current ≤2500 A
Color Red
Raw Material Parameter Value Unit
Hydroscopicity ≤0.2  %
Dielectric Loss 0.01
Insulation Resistance 1.0*10¹⁴ Ω
Disruptive Strength ≥18 kV/mm
Arc Resistance 182 S
Impact Strength ≥7 kj/m²
Bending Strength ≥110 N/mm²

Shielded Contact Box CHN24-507
