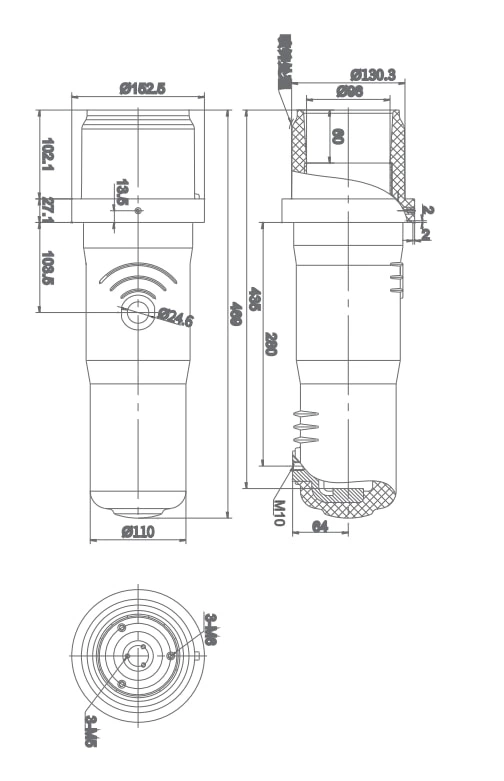

Fuse Insulating Cylinder SF6-12/469

Technical Parameter Value Unit
PF 42 kV/1min
PD 1.1Ur≤3 pC
Flame Retardant Rating V1 V0 Special Requirements UL94
Tg 105±5 °C
Lightning Impulse 75 kV
Leakage Rate 1.0*10¯⁹ Pa.m³/s
Color Red

 Epoxy Resin APG

Raw Material Parameter Value Unit
Hydroscopicity ≤0.2 %
Dielectric Loss 0.01
Insulation Resistance 1.0*10¹⁴ Ω
Disruptive Strength ≥18 kV/mm
Arc Resistance 182 S
Impact Strength ≥7 kj/m²
Bending Strength ≥110 N/mm²

Fuse Insulating Cylinder SF6-12/469
